AHRS & IRU
Attitude and Heading Reference System and Inertial Reference Unit
The array-IMU technology achieves tactical-grade performance using automotive-grade IMUs by filtering readouts from multiple sensors.
This approach, derived from Tensor Tech's satellite ADCS-MCB product, ensures stable lead times and cost-effectiveness.
Different IMU combinations can be configured to optimize performance and cost based on customer requirements.
Product Features
Configurable IMU array size for optimal performance under volume and cost constraints.
Sensor bias auto-estimation for steady performance.
Pre-calibration before delivery.
Configurable software for estimating desired states according to application requirements.
DynaSense
AHRS-ODM
IRU-ODM
PRODUCT
SPECIFICATIONS
- Yaw, Roll, and Pitch Accuracy
< 0.5 deg
- Angular Velocity limit of the system
> ± 125 deg/second, configurable
- 3-axis Magnetometer
Optional
- Update Rate
50 Hz
- Operating Temperature Range
-20 ~ 80 deg C
- Bandwidth
25 Hz
- Communication Interface
UART and WiF
- Application
Satellite Ground Equipment
- Power Consumption
< 2 W
SOLUTION
TAILOR-MADE SENSING
Optimal AHRS performance requires tuning for specific operating environments.
Vehicle dynamics, vibration profiles, and other conditions demand tailored filter and estimator configurations.
Tensor Tech offers flexible hardware scaling (adjustable IMU count) and professional software tuning services to match your application requirements.
OTHER
COMPONENETS

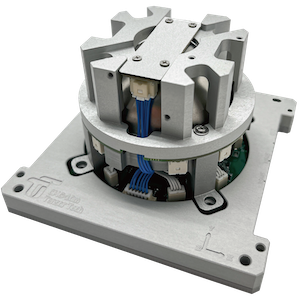

CMG-10m-N
TensorCMG-10m-N: Integrated Version - All-in-one package seamlessly combining all essential components into a compact, unified unit.
