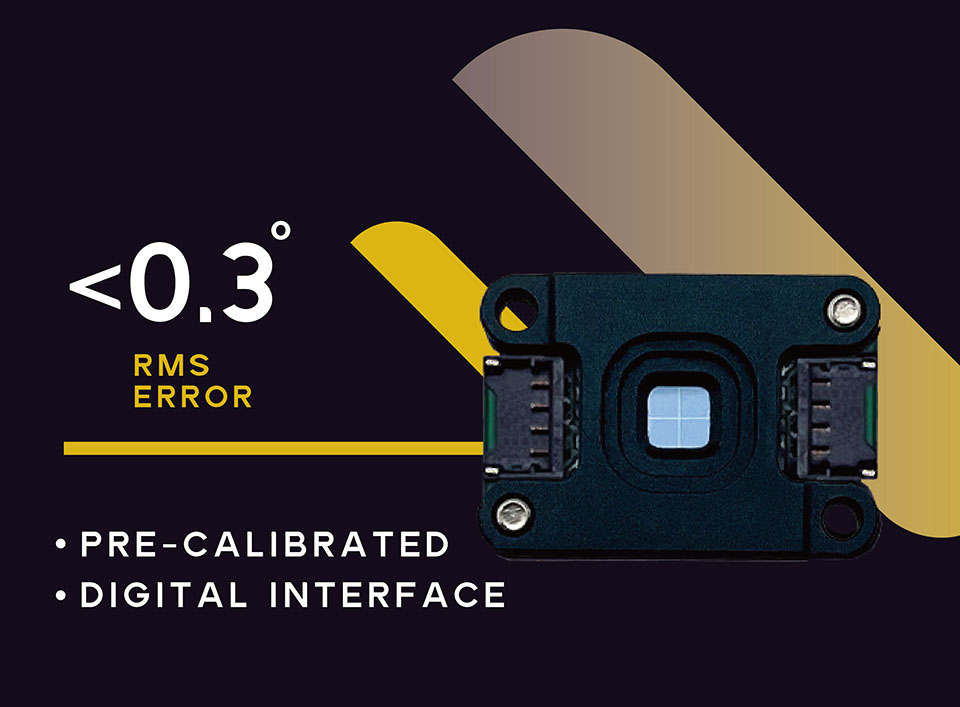

Fine Sun Sensor

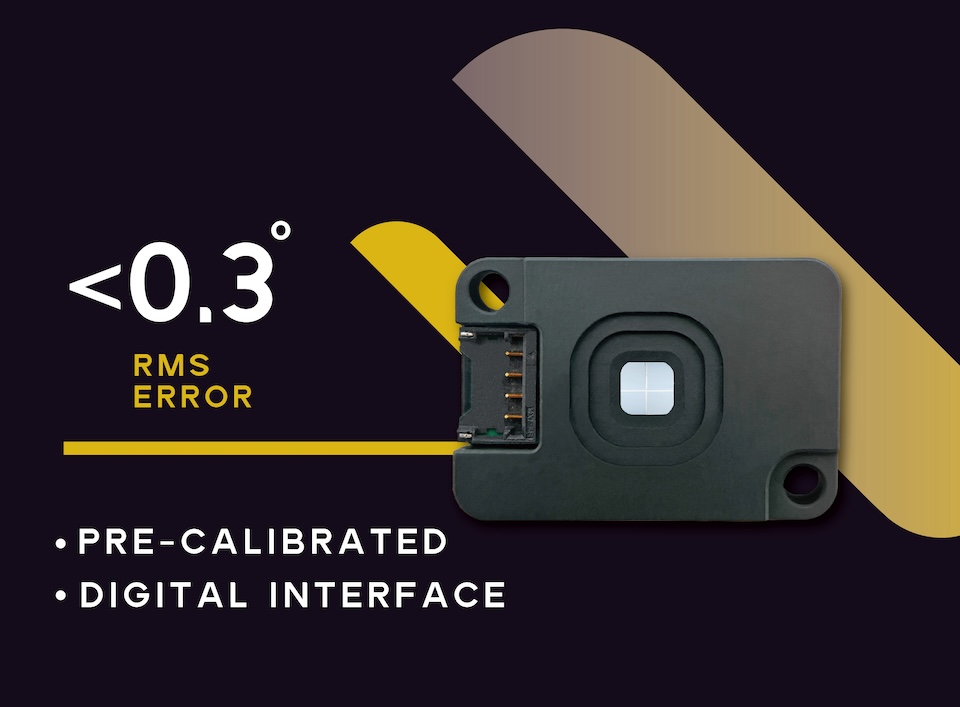

TensorFSS-15M fine sun sensor is a satellite attitude determination system based on an advanced photodiode quadrant detector shielded by an aperture mask. This design ensures sun incidence measurements up to 0.1-degree accuracy. Equipped with an embedded error correction table—derived from thorough in-house calibration—TensorFSS-15M delivers top class performance while remaining affordable for all budgets. Consuming 5.5 mA at 16 Hz and compliant with GEVS and ECSS testing standards, TensorFSS-15M combines reliability and efficiency. Additionally, its compact design ensures easy integration into satellite systems, making it an indispensable asset for a wide range of satellite applications.
Features
2-axis digital fine sun sensor
0.2 deg (1-sigma) of sun determination accuracy
Lower Power Consumption
Robust and Autonomous Recovery Mechanism
RS485 Interface
Calibration with automated rotary table
TensorFSS-15M offers configurable magnetometer functionality, which can be enabled or disabled based on mission requirements. When the magnetometer function is enabled, it enhances the measurement accuracy and reliability by providing additional magnetic field data to complement sun vector readings.
This dual-source sensing enables improved attitude determination, especially in scenarios where sun visibility is limited or environmental conditions introduce uncertainty. To ensure accurate magnetometer performance, TensorFSS-15M with magnetometer functionality should be installed at least 10 cm away from potential sources of magnetic interference, such as Control Moment Gyroscopes (CMGs), motors, or high-current wiring.
Enabling the magnetometer function transforms TensorFSS-15M into a more versatile and robust sensor, capable of supporting higher-precision orientation awareness for satellite missions.

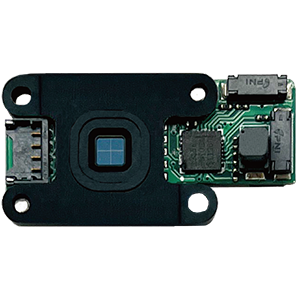

TensorFSS-15M

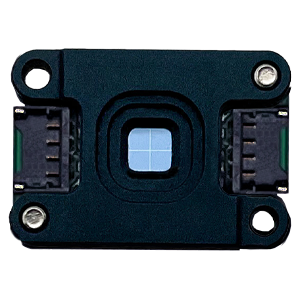

TensorCSS-10
TensorCSS-10S
SPECIFICATIONS
- Field of View (FOV)
120 deg
- Current Consumption (ACTIVE)
8.8 mA @ 3.3 V Input
- Interface
RS-485
- Accuracy, 1-sigma
< 0.2 deg,
< 0.1 deg upon request - Radiation Tolerance
> 24 krad
- Dimensions
22 x 15 x 5.3 mm3
- Data Rate
4, 8, 16 Hz
- Input Voltage
3.3 V
- Embedded Tri-Axis Magnetometer
Range: ± 800 uT,
Noise: 10nT, RMS - Mass
3.0 g
Coarse Sun Sensor
CSS-10 is a coarse sun sensor with a simple and robust design. This sun sensor is suitable for spacecrafts with low pointing requirement or need a robust input for sun-acquisition algorithm. Multiple sun sensors are recommended to be installed on different faces of the satellite to maximize the field of view of the sun sensor array.
1-axis analog coarse sun sensor
5 deg (1-sigma) of sun determination accuracy
Hardware protection from short circuit system failures
Six coarse sun sensors can provide a full sky (4π) FOV coverage (± 60 deg for each sensor)
Surface-mount or screw lock version available
Comprehensive characteristic report on each unit
Field of View (FOV)
120 deg
Accuracy, 1-sigma
5 deg
Current Consumption (Active)
< 0.1 mA@ 3.3V Input
Radiation Tolerance
> 24 Krad
Input Voltage
3.3V
Dimension
15 x 7 x 6 mm3
Mass
0.5 g
PRODUCTS

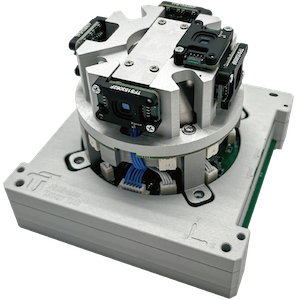

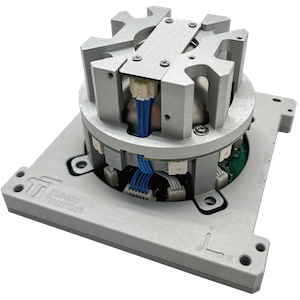

ADCS-10m
